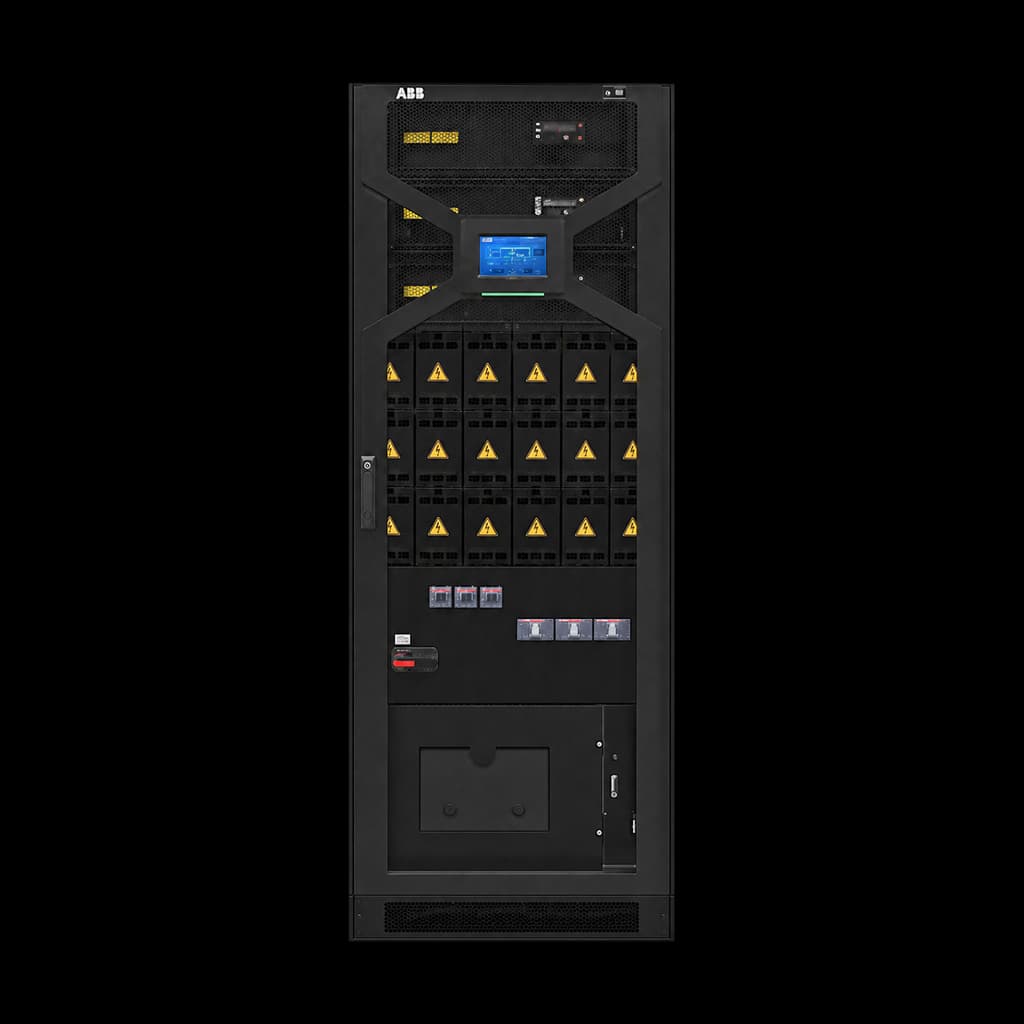

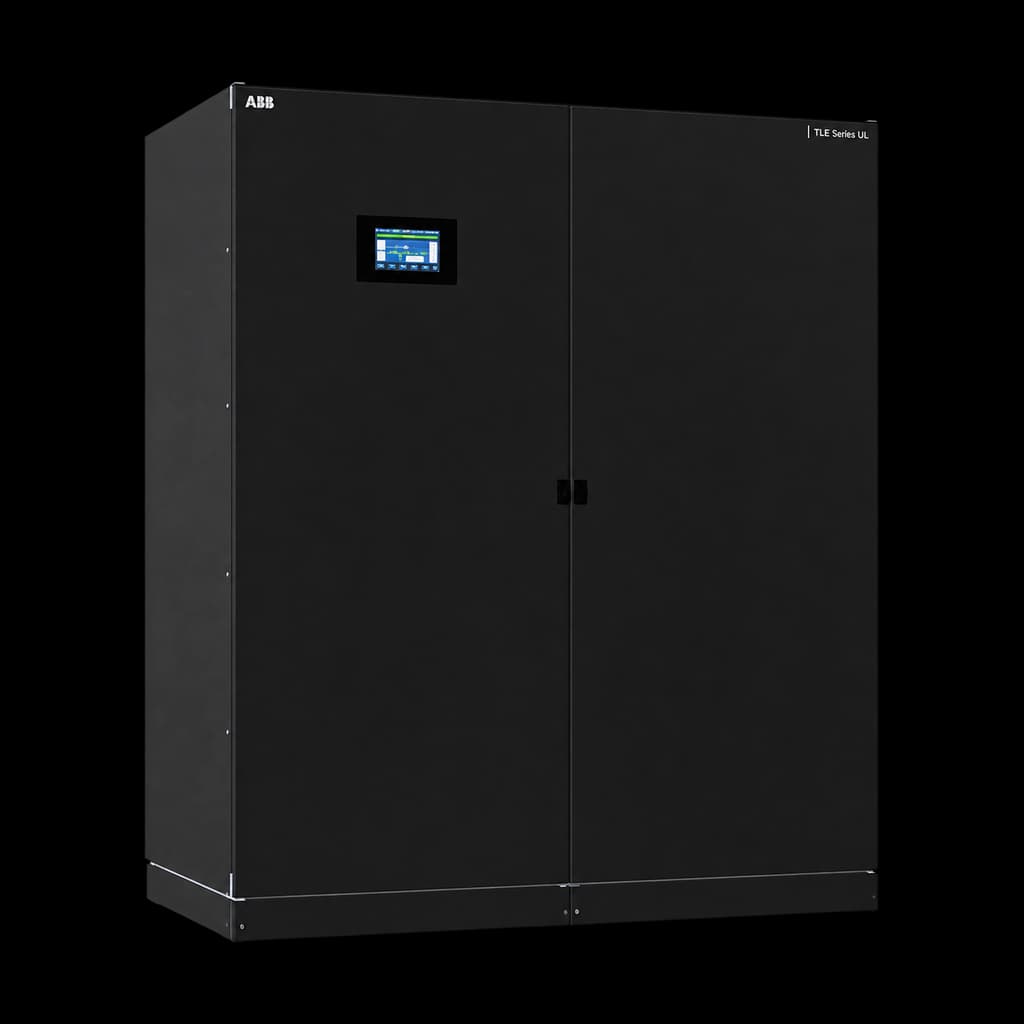

TLE Series 40–150 kW (480 V)
TLE Series 40–150 kW is a three-phase, 480 V online double-conversion UPS for server rooms, medical facilities, and industrial process sites. Six output ratings span 40, 50, 80, 100, 120, and 150 kW. Up to six units can operate in Redundant Parallel Architecture for added capacity or redundancy, while front and top service access and configurable cable entry support equipment-room layouts.
Product details
Key features
- Redundant Parallel Architecture supports capacity or redundancy configurations

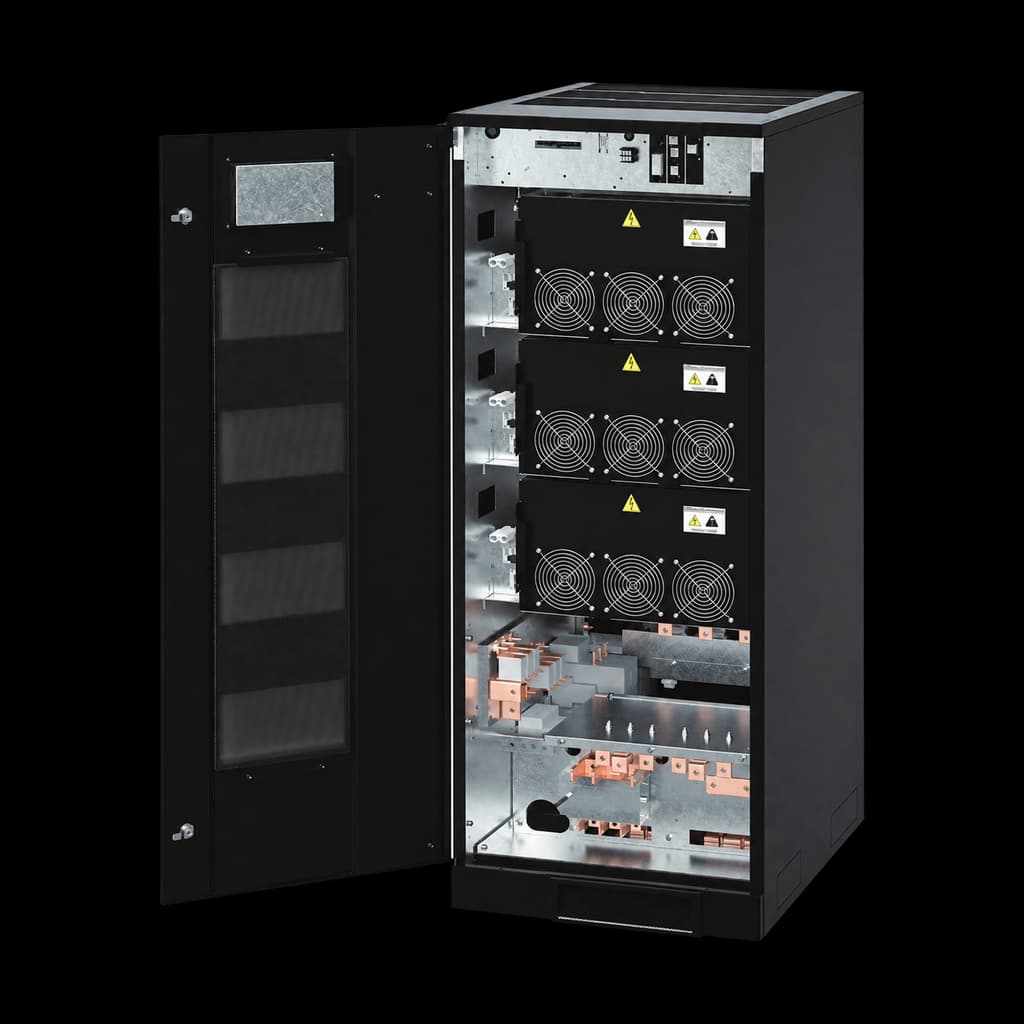

- Front and top service access
- Bottom-front cable entry; top entry available with sidecar
- Static bypass and backfeed protection are built in
Key specs
- Topology
- Three-phase online double conversion with three-level inverter; eco mode available
- Power range
- 40–150 kW, scalable vertically
- Parallel capacity
- Up to six units in Redundant Parallel Architecture (RPA), to 900 kW
- Voltage
- 480 V input and output, 3-phase
- Frequency
- 60 Hz
- Eco mode efficiency
- Up to 98.9%
- Output power factor
- Unity
- Bypass
- Built-in static bypass switch
- Ventilation
- Front to top
- Design life
- 12 years plus, stated by ABB
- Additional modes
- Frequency converter / conditioner mode without batteries
- Protection
- Backfeed protection; Blackbox diagnostics
- Standards
- UL marking; EN/IEC 62040-1, 62040-2, 62040-3; IEC 60950
