DPA 60 (20–60 kW, 208 V)

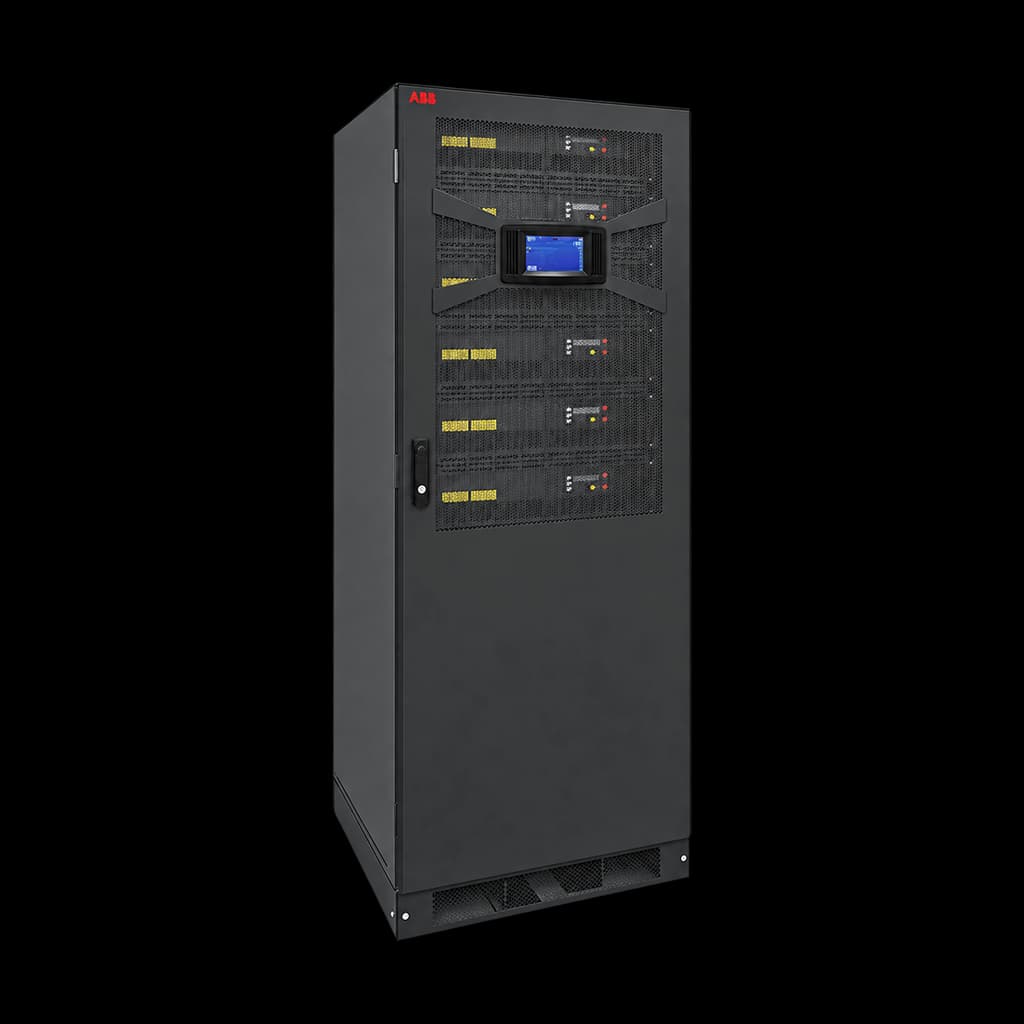

DPA 60 is a modular, online double-conversion UPS for server rooms, small data centers, and process loads that need capacity growth and internal battery options in a compact 208 V system. Decentralized Parallel Architecture places the rectifier, inverter, bypass, controls, and charger within each power module. The cabinet uses 20 kW modules across a 20–60 kW range and can parallel with four additional cabinets for up to 300 kW.
Product details
Key features
- Decentralized power modules contain independent conversion and control components
- Online-swappable modules allow service while other modules carry the load
- Internal battery configurations accommodate up to six strings
- Bottom cable entry standard; top-entry sidecar optional
Key specs
- Topology
- Modular online double conversion, Decentralized Parallel Architecture (DPA)
- Power module
- 20 kW
- Power range
- 20–60 kW
- Voltage
- 208/120 V, 3-phase
- Frequency
- 50/60 Hz
- Batteries
- Internal
- Double conversion efficiency
- Up to 94%
- Eco mode efficiency
- Up to 99%
- Energy losses in eco mode
- Up to 80% reduction, per ABB
- Redundancy
- N+1 with no single points of failure
- Maintenance
- Online swappable modules; module replacement in about 10 minutes
