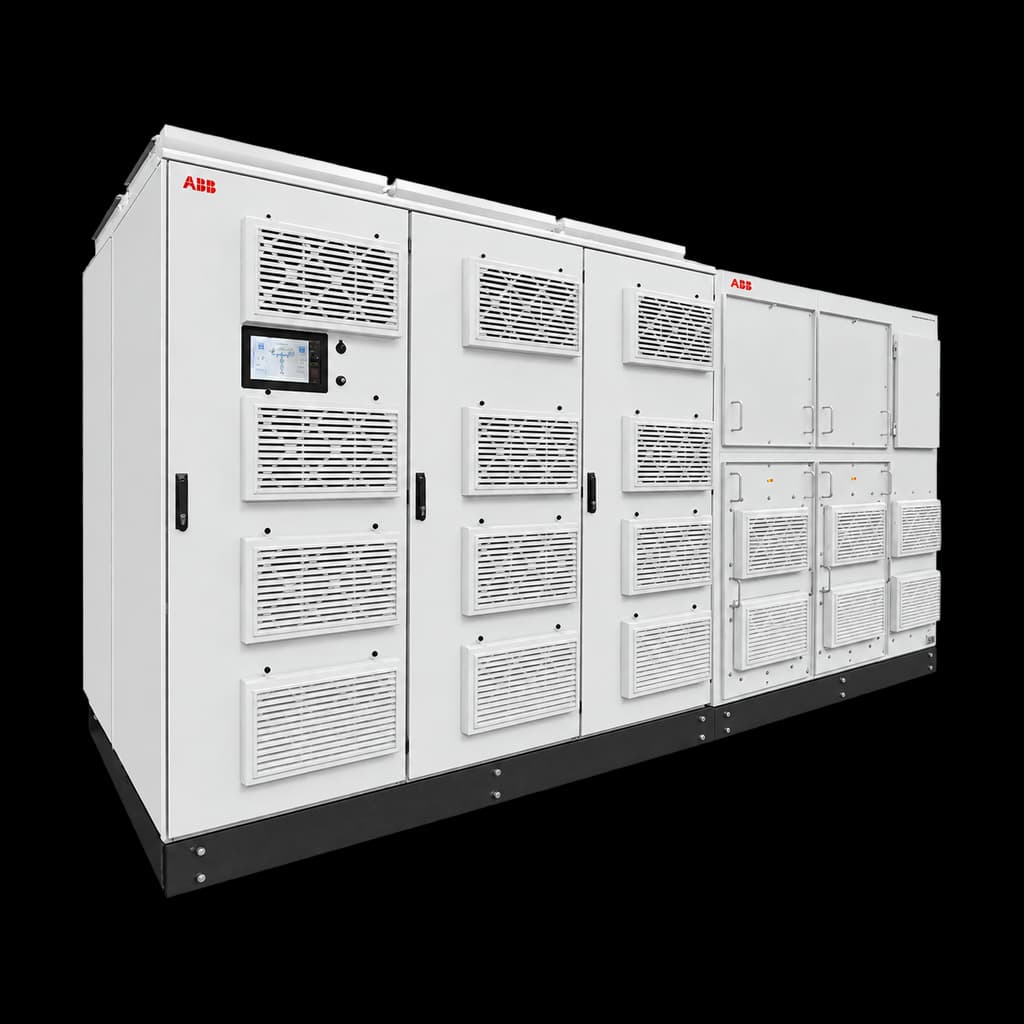

HiPerGuard
HiPerGuard is a medium-voltage UPS for multi-megawatt critical facilities. Its impedance-isolated static converter (ZISC) architecture conditions utility disturbances and provides stored-energy backup. Each unit supplies 2.5 MW, with up to ten units paralleled for 25 MW. Voltage classes extend to 24 kV, and ABB specifies 98% efficiency at 50–100% loading under nominal conditions.
Product details
Key features
- Parallel operation supports up to ten 2.5 MW units
- ZISC architecture isolates and conditions utility disturbances
- Medium-voltage power protection with low-voltage converters and storage
- Intrusive maintenance intervals up to ten years
- Energy reserve can support grid services and peak shaving
Key specs
- System power
- 2.5–25 MW, up to ten units in parallel
- Voltage class
- Up to 24 kV
- Unit rating
- 2,500 kVA / 2,500 kW at load power factor 1.0
- Rated voltage options
- 4.16–4.76, 6–6.6, 10–11, 12.47–13.8, or 20–22 kV, by product class
- Architecture
- ZISC-enabled line-interactive UPS
- Efficiency
- 98% at 50–100% loading under nominal conditions
- Frequency
- 50 or 60 Hz
- Input voltage tolerance
- ±10% from nominal voltage
- Energy storage
- ABB-qualified lithium-ion batteries
- Storage autonomy
- 60 seconds to hours; confirm configuration with ABB
- Intrusive maintenance
- Intervals up to ten years
- Communication
- Ethernet and Modbus TCP
