Precision Cooling
Rittal

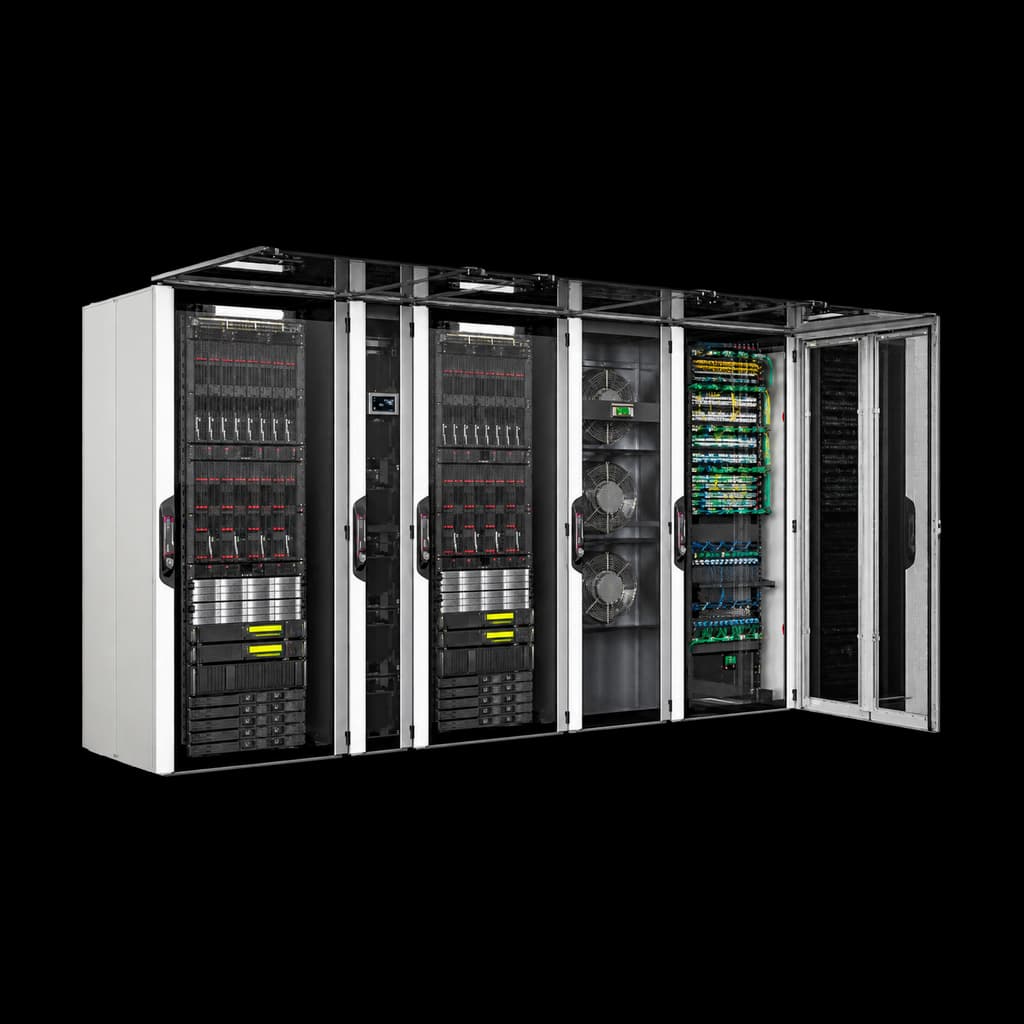

Liquid Cooling Package
Liquid Cooling Package manages concentrated server heat beside or within rows of IT enclosures. It serves data centers that use contained airflow and facility cooling infrastructure to separate hot return air from equipment supply air. The product covers the complete packaged-cooling approach without splitting each medium, arrangement, or article number into a separate APG record. Selection begins with heat load, room layout, available heat-rejection infrastructure, aisle design, maintenance access, and resilience requirements.
Product details
Key features
- Rack variants keep cooling separate from the server enclosure
- Inline variants support hot-aisle to cold-aisle airflow
- Modular fan units can be replaced during operation
- Integrated monitoring tracks temperatures, water flow, output, speed, and leakage
Key specs
- Type
- Rack and row cooling package
- Configurations
- Rack and inline
- Cooling modes
- CW, CWG, DX, and FC
- Representative cooling output
- 30 kW
- CW cooling medium
- Water
- Representative airflow
- 6,500 m³/h at 60 Hz
- Representative voltage
- 200–240 V, 1~, 50/60 Hz
- Fan modules
- Four EC fans on current 30 kW CW variants
- Representative dimensions
- 300 × 2,000 × 1,200 mm
- Water connection
- DN 40 (G 1½ in external thread)
- Maximum operating pressure
- 10 bar
Start with this product.
Send the load, location, timeline, and drawing package. APG will use this product to route the quote request.
