Power Monitoring
Packet Power
Wireless Gateways

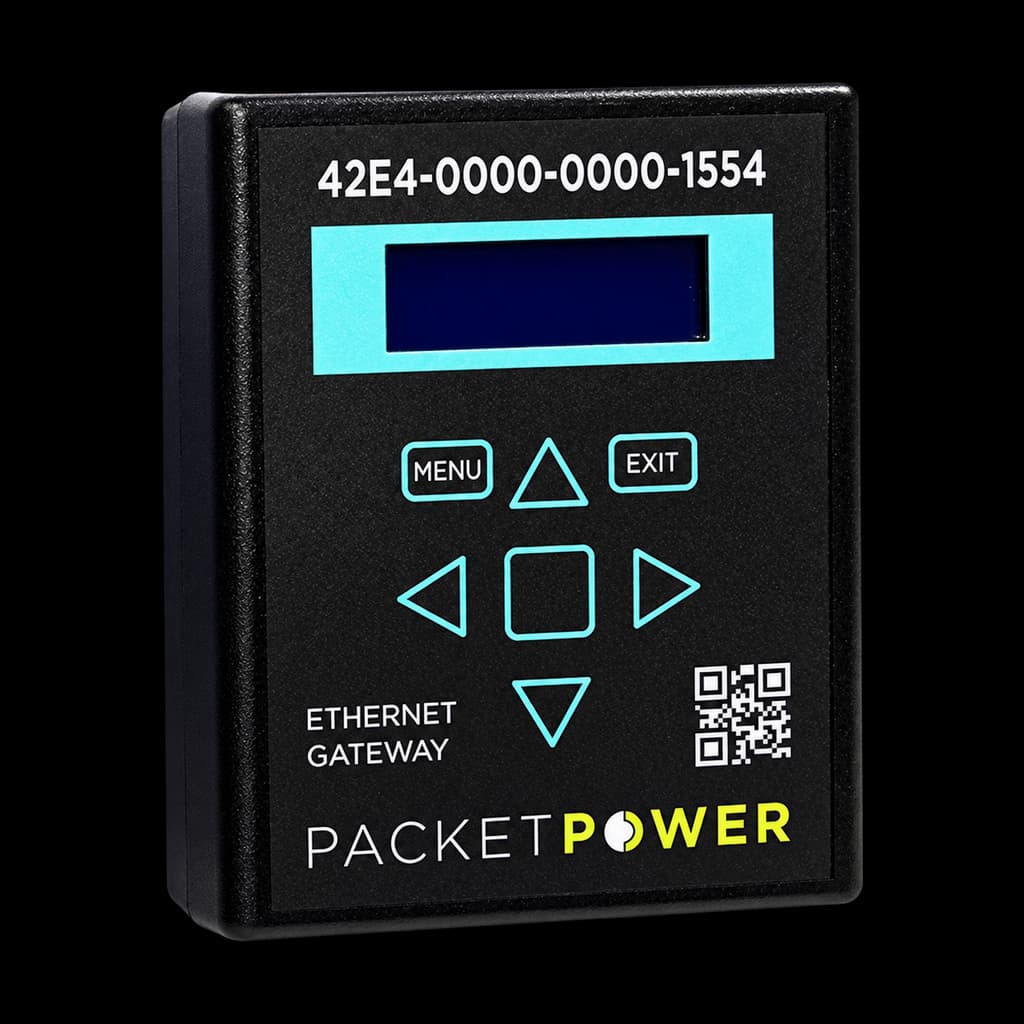

Packet Power Wireless Gateways connect the wireless monitoring mesh to EMX, BMS, and DCIM systems. Standard models support up to 100 monitoring units, while small-site models support 30 or fewer. The EG4 communicates at 900 MHz and 2.4 GHz. Available integrations include SNMP, Modbus, BACnet, EtherNet/IP, MQTT, and MTConnect. Its 76 × 94 × 31 mm enclosure mounts on DIN rail, screws, cable ties, or adhesive pads.
Product details
Key features
- Supports up to 100 monitoring units per standard gateway
- Balances monitoring traffic across added gateways
- Provides wired integrations for BMS and DCIM systems
- Communicates at 900 MHz and 2.4 GHz
- Mounts on DIN rail, screws, cable ties, or adhesive pads
Key specs
- Gateway capacity
- Small-site: 30 or fewer units; standard: up to 100 units
- Operating frequency
- 900 MHz and 2.4 GHz
- Wireless protocol
- Frequency-hopping self-configuring load-balancing mesh
- Integration protocols
- SNMP V1/V2c/V3, Modbus TCP/IP, BACnet, EtherNet/IP, MQTT, and MTConnect
- Dimensions
- 76 × 94 × 31 mm
- Mounting
- DIN rail, screw, cable tie, or adhesive pad
- Local display
- LCD shows the IP address and gateway status
- Compatible devices
- Packet Power wireless monitoring units
Downloads
