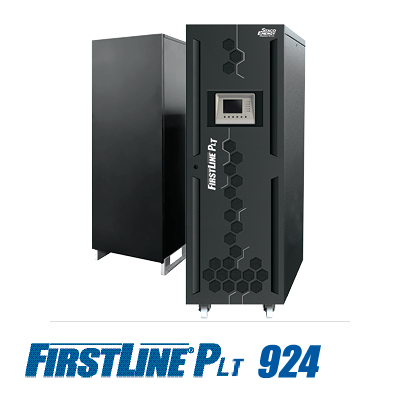

FirstLine PLT 924

9-54 kW Three Phase, On-Line Double Conversion, UL924 Central Lighting Inverter

Emergency Lighting System

FirstLine PLT 924 is the result of your demand for an Emergency Lighting solution tailored to meet your requirements for a reliable, cost effective alternative for Emergency Lighting applications that help ensure the safety of your most important asset — your people. FirstLine PLT 924 provides that solution with its easy-to-manage double conversion power electronics and battery system and its rugged all steel construction.

    Get In touch

    What is 7 x 6 ? Refresh icon

    What is an Emergency Lighting Inverter?

    The National Fire Protection Association (NFPA) has written Life Safety Code® (NFPA 101®*) that defines the requirements for emergency lighting for means of egress. The standard requires that emergency illumination shall be provided for not less than 1-1/2 hours (90 minutes) in the event of failure of normal lighting. Installation and testing requirements are written in the National Electric Code® (NFPA 70®*). The FirstLine®PLT 924 is a central system battery back-up to meet these requirements. In the event of an AC power failure, FirstLine®PLT 924 automatically supports the connected lighting loads on battery power and will continue to provide power without any interruption for a full 90 minutes. When the utility power returns to normal, FirstLine®PLT 924 will automatically recharge the batteries to be ready for the next power disturbance. In addition to meeting life safety requirements, the FirstLine®PLT 924 can also increase the life expectancy of the protected lighting system and reduce long-term cost of ownership.

    Features

    • Compact & Reliable
    • 9-54 kW provides for a smaller footprint
    • Cooler operation extends internal component life
    • AC Input Performance
    • High input power factor of 0.99
    • Low input current distortion of <1% (THDi) @ full load
    • Soft Start Power walk-in function that ensures progressive rectifier start-up
    • IGBT and Digital Signal Processor (DSP)
    • Reduces the impact of the UPS on the local supply
    • Simplifies installation where there is limited power capacity
    • Dual Input
    • Main power and secondary emergency standby power increase resilience of single or parallel system configuration
    • Adaptive Feed Cancellation
    • Advanced control with AFC forward cancellation technology for low harmonic distortion
    • Menu Select Display
    • User friendly display is easy to see and intuitive to use
    • Parallel up to 4 Units
    • Provides redundancy for mission critical applications with no additional hardware
    • Parallel Kit, communication through CANBUS Parallel Card
    • Installation Savings
    • System arrives with batteries pre-mounted and wired, saving additional labor cost
    • Warranty
    • Full two year warranty

    Application

    • Public Buildings
    • Theaters
    • Schools
    • Parking Garages
    • Housing Complexes
    • Lighting Types Supported
    • Incandescent
    • Magnetic and electronic fluorescent ballasts
    • High power factor compact fluorescent
    • High Intensity Discharge (HID)
    • High Pressure Sodium (HPS)
    • Metal Halide (MH)
